512k Storage 1600mAh Battery Wireless 2D Barcode Scanner With Charging Cradle For Retail Chains

Product Categories
Shenzhen DYscan Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

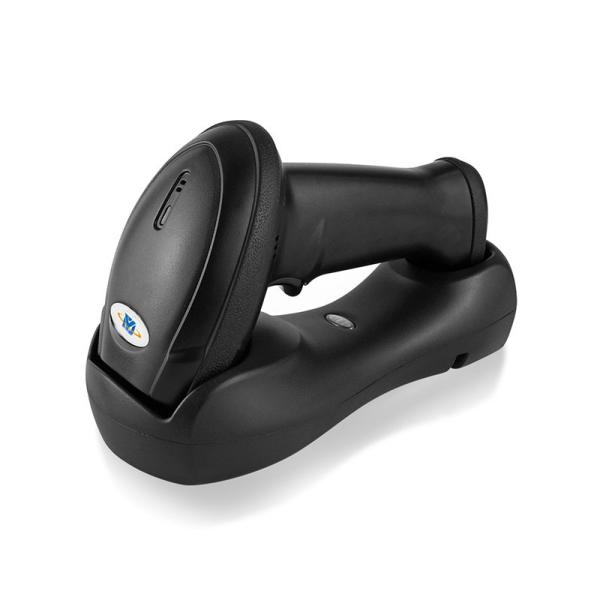

512k Storage 1600mAh Battery Wireless 2D Barcode Scanner With Charging Cradle For Retail Chains

  • 1
  • 2

Brand Name : Dingyu/ DY SCAN

Model Number : DS6202G

Certification : CE, ROHS, FCC, IEC, FDA

Place of Origin : China

MOQ : 1 Pcs

Price : Negotiate

Payment Terms : T/T, Paypal, Alibaba

Supply Ability : 10000pcs/month

Delivery Time : 3-7 days

Packaging Details : L260mm*W260mm*H80mm

Communication way : wireless 2.4GHz

Scan type : CMOS

Resolution : ≥3mil/0.076mm

Scan tolerance : 60CM/S

Battery capacity : 1600mAh

Battery charging time : 6.5 hours

Contact Now

Wireless 2D Barcode Scanner for Retail Chains 512k Storage 1600mAh Battery

Product Description

DS6202G is a high-performance 2D barcode scanner featuring advanced CMOS image recognition technology. It effortlessly reads barcodes on paper, products, screens, and various other media.
This versatile device is widely utilized in manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, asset management, and more.

Features

  • Ergonomic design for comfortable use.
  • Effortlessly reads all mainstream 1D and 2D barcodes on the market.
  • Equipped with a high-performance processor for fast decoding.
  • Supports USB and 2.4G wireless interfaces.
  • Intelligent automatic reconnection when out of range, no manual setup required.
  • Low power consumption for extended working hours.



Application
▅ Supermarket ▅ Warehouse
▅ Mobile payment ▅ Retail chain
▅ Courier ▅ Health care

Physical Parameter
Weight≈210g(Scanner)≈230g(Base)
DimensionL175mm * W72mm * H100mm(Scanner)
L200mm * W90mm * H51mm(Base)
Interface TypeUSB
Communication waywireless 2.4GHz
Power supplyDC 5V@220mA(work)
Performance
Scan typeCMOS
Light sourceRed light LED 625±10nm(aim),6500K LEDs(lighting)
CPU32-bit
Resolution640*480
Resolution≥3mil/0.076mm(PCS90%,Code 39)
Scan tolerance60CM/S
Depth of field0mm-700mm
Scan modeManual, Auto sense
Scan angleRoll360°, Pitch±60°, Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print contrast signal≥20%
Ambient lightDark environment, indoor natural light
Wireless communicate modeSynchronization , asynchronous, storage mode
Wireless transmission distance2.4GHz,200meters(Open distance)
Storage512K(over 5000 barcode)
Battery capacity1600mAh
Battery charging time6.5 hours
Continuous working time≥12 hours
Symbologies

1D:UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128, Code 39,Code 93,Code 11,Interleaved 2 of 5, ITF-6, ITF-14,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,etc.
2D: QR Code, Micro QR Code,PDF417,Micro PDF417,Data Matrix, Hanxin Code, etc.

Environmental
Operating temperature0℃ to 50℃
Storage temperature-20℃ to 60℃
Humidity5% to 95%(non-condensing)
Drop Height1.5m
Transport vibration Test10H@125RPM
Depth of field
3MIL25-110mm (PCS90%,Code 39)
13MIL25-390mm (PCS90%,EAN-13)
20MIL55-460mm (PCS90%,Code 39)
40MIL110-700mm (PCS90%,Code 39)
20MIL0-200mm (PCS90%,QR Code)
Accessories list
Data cableUSB, connect the scanner to a host device and charging
BaseUsed to receive and transmit scanner data


FQA:

Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.

Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.

Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months

Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.

Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
