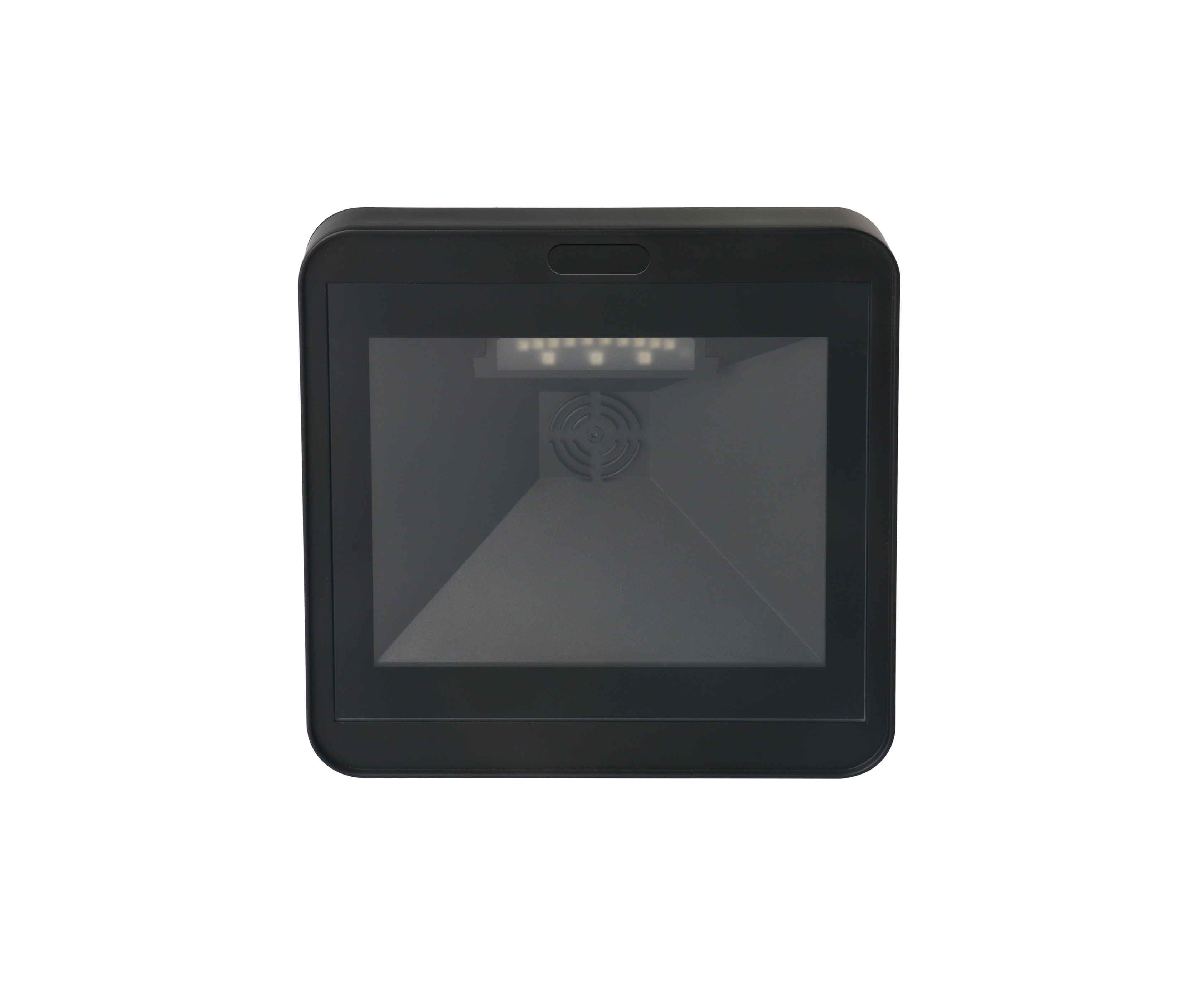

High Quality Wall mounted USB RS232 1D 2D Platform Desktop POS Square Barcode Scanner
Description:
DP8530 is a high performance platform with leading CMOS image recognition
technology and intelligent image recognition system.
It can scan universal 1D 2D codes, read the paper, goods, screens, other media
barcodes.
Compact design, beautiful appearance with efficient reading performance, provide
users with excellent experience.
Features:
DP8530 is a high performance platform with leading CMOS image recognition
technology and intelligent image recognition system.
It can scan universal 1D 2D codes, read the paper, goods, screens, other media
barcodes.
Compact design, beautiful appearance with efficient reading performance, provide
users with excellent experience
Product Data Sheet:
| Scan Type | CMOS |
| Light Source | Red Light LED 625±10nm(aim), 5600K LEDs( Lighting) |
| CPU | 32-bit |
| Resolution | 1280*800 |
| Resolution | ≥5mil/0.127mm(PCS90%,Code 39) |
| Depth of field | 0mm-450mm |
| Scan Mode | Auto Sense |
| Scan angle | Roll±360°, Pitch±80°, Skew±70°(PCS90%, Code 39, 10mil/0.25mm) |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies | 1D:Code 39,Codablock, Codabar, Code 128/EAN 128, Code 93,Code 11, Interleave 2 of 5, Matrix 2of 5, EAN.UCC Composite,Straight 2 of 5 Industrial, Straight 2 of 5,RSS,Plessey Code, MSI Code,Telepen,UPC-A,UPC-E0,EAN/JAN-13,BPO,Planet,TLC39,etc. 2D: PDF417,QR CODE,MICRO QR,DATAMATRIX, AZTEC CODE,HanXin,Maxicode,Micro PDF417,etc. |
| Weight | ≈265g (no Cable) |
| Dimension | 156.75*77.4*156.75mm |
| Interface Type | USB |
| Communication Mode | USB,RS232 |
| Power Supply | DC 5V@470mA(work) |
| Cable length | 1.5m |
FAQ:
Q:Can I make a trial or sample order before mass order?
A: Yes,sure.
Q: How can I print my logo on printer? how much ?
A: Firstly,pls inform us your logo and printing position expected,then we will make sample for your confirmation shortly The cost depends on some factors.
Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing, please contact us for more details.
Q: How about your warranty?
A: The buyer will enjoy 1 year warranty since buying from us.
Q: If the scanner not working ,how can we do ?
A: pls contact and inform related sales representative with the issues you have.
