2.4GHz Wireless CMOS Bluetooth Barcode Scanner 450mAh

Name: 24GHz Wireless CMOS Bluetooth Barcode Scanner 450mAh
Brand: DYscan
Price: 1 USD

Wholesale 2.4GHz Wireless CMOS Bluetooth Barcode Scanner 450mAh from china suppliers

Brand Name : DYscan

Model Number : DI9150-2D

Certification : CE ROHS FCC IEC

Place of Origin : China

MOQ : 2pcs

Price : negotiable

Payment Terms : T/T, Western Union,PAYPAL

Supply Ability : 100000pcs/month

Delivery Time : 5-7days

Packaging Details : 55*27*22.5cm/50pcs /Carton

Scan Type : CMOS

Resolution : 4mil

Decoding speed : 640*480

Depth of field : 30-500mm

Scan Mode : Trigger mode、Auto sense mode

Print Contrast Signal : ≥25%

Storage : 16Mb（over 100,000 Product code）

Battery capacity : 450mAh

Symbologies : 1D 2D

Dimension : 73.8mm L * 37mm W *16.3 mm H

Contact Now

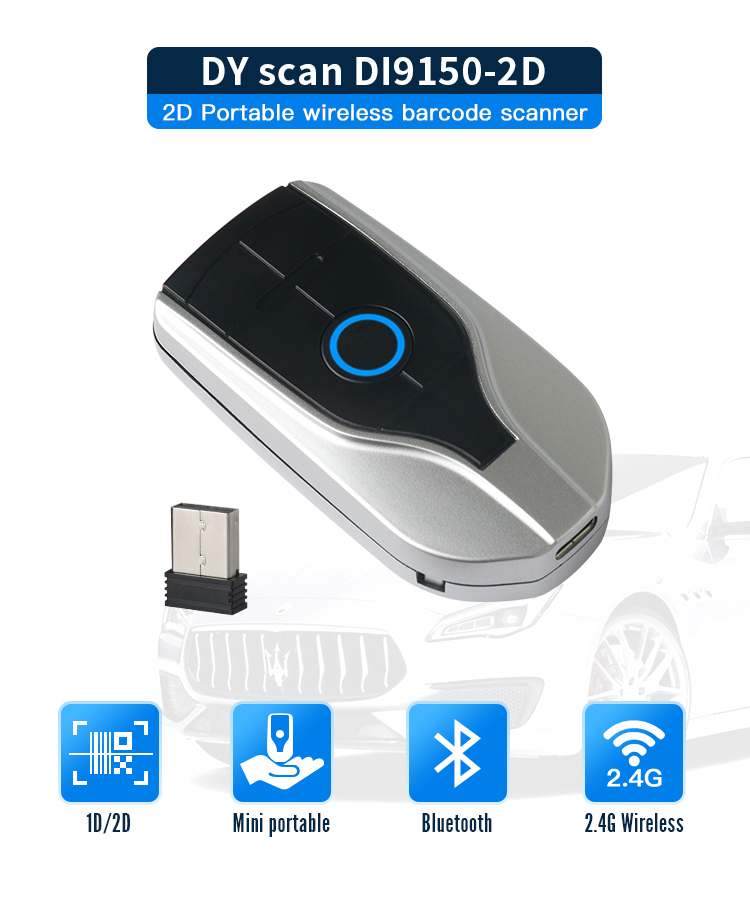

2D Portable Barcode Scanner

DI9150-2D is a high-performance 2D bluetooth and wireless barcode scanner with leading CMOS image recognition technology.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory, etc.

Feature

Wearable design, widely used in warehouse, express.
Read all mainstream 1D 2D barcodes in the market easily.(4mil)
100,000 data storage capacity.
Bluetooth 4.2, intelligent automatic connection when it’s beyond range, not manual setting.
Mode: Bluetooth(HID,SPP,BLE), Wireless connected with PC, mobile phone easily.

Performance

Scan Type	CMOS
Light Source	Aiming: Red LED,wavelength coverage 525nm
CPU	32-bit
Resolution	640*480
Start time	4s
Resolution	≥4mil/0.1mm(PCS90%,CODE 39)
Decoding speed	25CM/S
Depth of field	30-500mm
Scan Mode	Trigger mode,Auto sense mode
Indicator	LED, Buzzer, Vibration
Scan angle	Roll:±360°,Pitch:±60°or greater,Yaw:±55°or greater
Print Contrast Signal	≥25%
Ambient Light	Dark environment, indoor natural light
Wireless communication mode	Synchronization , storage
Wireless transmission distance	2.4GHz,150meters(Open distance), Bluetooth 30m ( Open distance)
Storage	16Mb(over 100,000 Product code)
Battery capacity	450mAh
Battery charging time	About 1.5 h
Continuous working time	≥2.5 hours
Symbologies	1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code) 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec

Physical Parameter

Weight	≈70g(without cable)
Dimension	73.8mm L * 37mm W *16.3 mm H
Communication Mode	USB-KBW ,Wireless bluetooth
Interface Type	Type C
Power Supply	DC 5V@150mA(work)

Environmental

Operating temperature	-20℃ to 55℃
Storage temperature	-20℃ to 60℃
Humidity	5% to 95%(non-condensing)
Drop Height	1.5m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp.,
High Temp.	60℃
Low Temp.	-20℃
Transport Vibration Test	10H@125RPM

Detail Image

2.4GHz Wireless CMOS Bluetooth Barcode Scanner 450mAh
