Linear CCD 2.4GHz Wireless Ring Barcode Scanner Symcode 1D

Name: Linear CCD 24GHz Wireless Ring Barcode Scanner Symcode 1D
Brand: DYscan
Price: 1 USD

Wholesale Linear CCD 2.4GHz Wireless Ring Barcode Scanner Symcode 1D from china suppliers

Brand Name : DYscan

Model Number : DI9010-1D

Certification : CE ROHS FCC IEC

Place of Origin : China

MOQ : 2pcs

Price : negotiable

Payment Terms : T/T, Western Union,PAYPAL

Supply Ability : 100000pcs/month

Delivery Time : 5-7days

Packaging Details : 60*35.5*23.5cm/50pcs /Carton

Scan Type : Linear CCD

Resolution : ≥4mil/0.1mm(PCS90%,Code 39)

Decoding speed : 300times/s

Depth of field : 60mm-500mm

Scan Mode : Manual ,Continuous, Flashing, Command trigger

Print Contrast Signal : ≥25%

Storage : 16Mb（over 100,000 Product code）

Battery capacity : 360mAh

Symbologies : 1D

Dimension : L51.5mm * W35mm * H45mm

Contact Now

2D Portable Barcode Scanner

DI9010-1D is a high-performance 1D bluetooth barcode scanner with leading Laser recognition technology.
It can easily read the paper, goods and other barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.

Feature

Wearable design, widely used in warehouse, express.
Read all mainstream 1D barcodes in the market easily.(4mil)
100,000 data storage capacity.
Bluetooth 4.2, intelligent automatic connection when it’s beyond range, not manual setting.

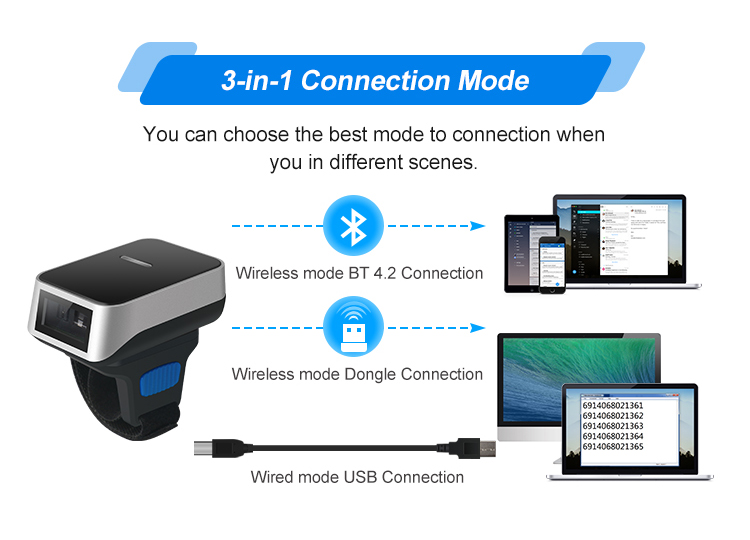

Mode: Bluetooth(HID,SPP,BLE), wired, connected with PC, mobile phone easily.

Performance

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	1500
Start time	4s
Resolution	≥4mil/0.1mm(PCS90%,Code 39)
Decoding speed	300times/s
Depth of field	60mm-500mm
Scan Mode	Manual ,Continuous, Flashing, Command trigger
Indicator	LED, Buzzer, Vibration
Scan angle	Roll:±30°,Pitch:±60°or greater,Yaw:±60°or greater
Print Contrast Signal	≥25%
Ambient Light	Dark environment, indoor natural light
Wireless communication mode	Synchronization , storage
Wireless transmission distance	2.4GHz,150meters(Open distance), Bluetooth 30m ( Open distance)
Storage	16Mb(over 100,000 Product code)
Battery capacity	360mAh
Battery charging time	About 1.5 h
Continuous working time	≥7.5 hours
Symbologies	UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.

Physical Parameter

Weight	≈35g(without cable)
Dimension	L51.5mm * W35mm * H45mm
Communication Mode	USB-KBW ,Wireless bluetooth
Interface Type	Type C
Power Supply	DC 5V@110mA(work)

Environmental

Operating temperature	-20℃ to 55℃
Storage temperature	-20℃ to 60℃
Humidity	5% to 95%(non-condensing)
Drop Height	1.5m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp.,
High Temp.	60℃
Low Temp.	-20℃
Transport Vibration Test	10H@125RPM

Detail Image

Linear CCD 2.4GHz Wireless Ring Barcode Scanner Symcode 1D
